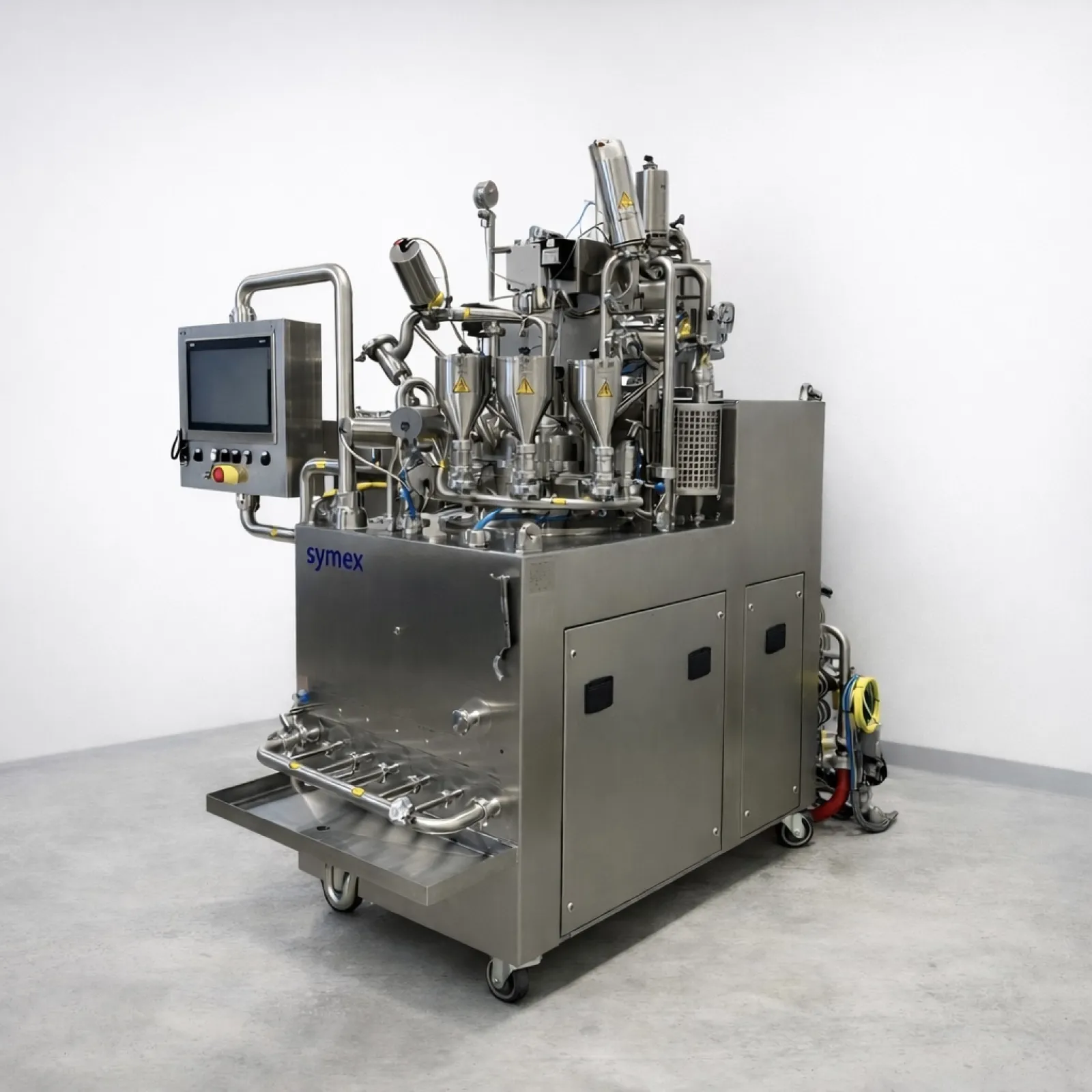

symex pilot mixers are used in product and process development (scale-up) of smaller product batches/product samples up to 30 liters and provide accurate measurement data in small batches that can be transferred to real production mixer.

Semi-solid and liquid products, such as oil-in-water and water-in-oil emulsions, fine and coarse suspensions, and viscosities up to 2,000,000 cP can be produced.

Technical features

• Compact design, identical in construction to the process mixer

• Ready for immediate use/can be used independently of location

• Coaxial agitator with central and scraper agitator

• Original Co-Twister rotor-rotor homogenizer (independent control of flow and shear)

• Fully automatic system control

• App platform (remote access to system data, process conditions, and reports)

• Validated complete cleaning between 20 and 45 minutes (CIP)

• External + internal circulation line (first-in-first-out principle)

• Hot/cold emulsification process directly in the shear gap

• Direct suction of liquids, powders, granulates, pellets

• Temperature control system (accurate to +/- 0.5°C)

• Raw material dosing system

• Pressure/vacuum vessel with double jacket according to ASME, PED, JIS, CRN, Gost, China Stamp
