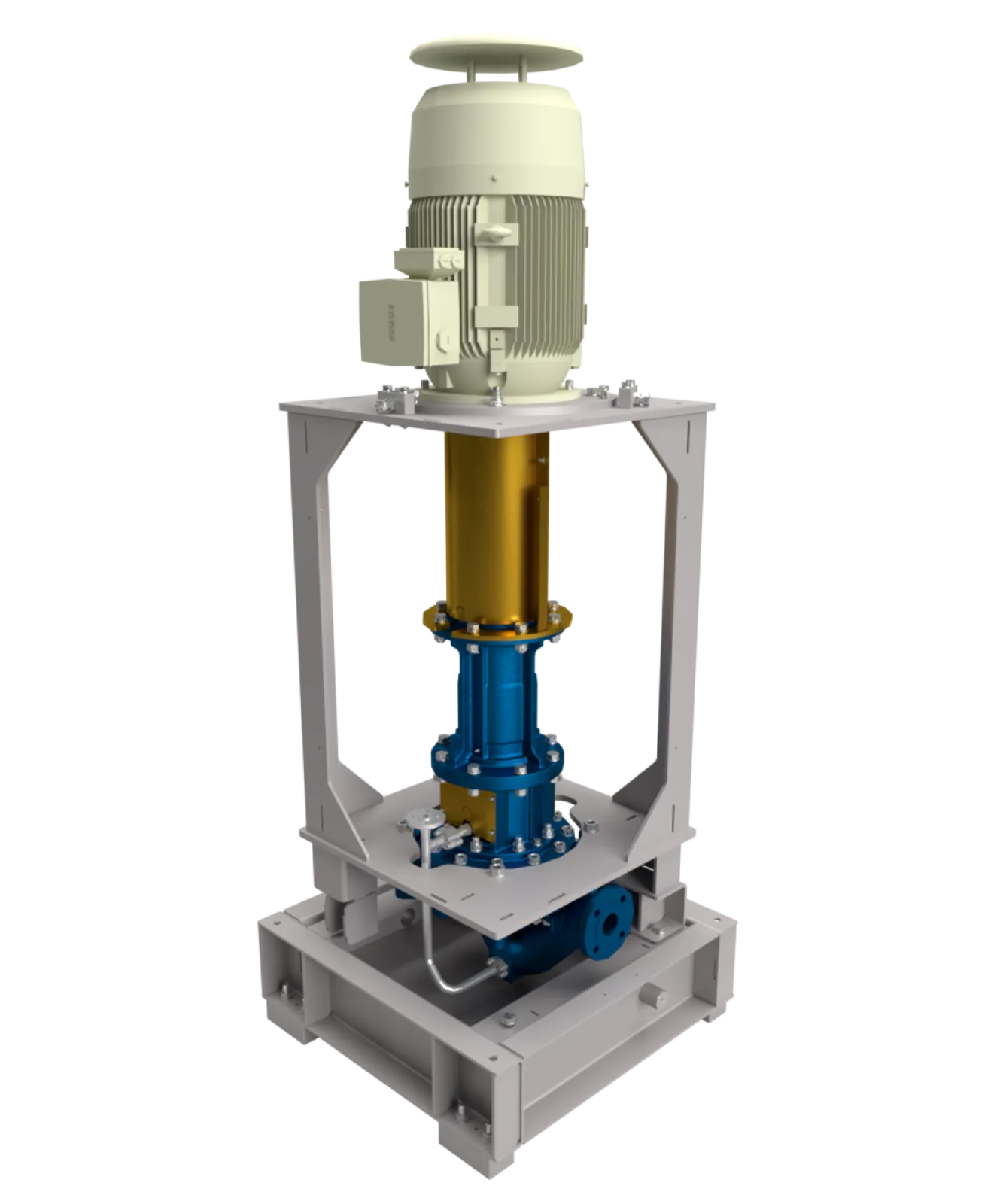

Centrifugal pumps series INP are single stage, normal priming pumps with side nozzles at the same level for direct mounting into pipework. The pumps are available according to API 610 - OH3, OH4 or OH5 as well. The casing design pressure is, depending on seal selection, for system pressures up to 40 bar. Some versions are additionally available with suction connection rotated 90° left or right from discharge side.

Fields of application

Main field of application of our inline pumps is conveying clean liquids. These pumps are available with inducer, as an option, to allow low system NPSH values. Due to the different materials available, conveying of various aggressive liquids in the chemical industry and oil and gas applications is possible. Our customers currently use our inline pumps for the following applications:

• Circulation of liquids in open and closed circuits

• Conveying of clean liquids

• Water treatment

• Offshore systems and refinery

• Reverse osmoses systems

Operating data

Flow: Q up to 380 m³/h

Total head: H up to 100 m

Motor power: P from 1,1 kW to 110 kW
